Gracenote® Update for your Acura Audio System
(for Alpine 3.0 Systems)
Gracenote® is a music database that enables your Acura audio system to identify artist, album and song names. The most popular and trusted ID technology for consumer electronics today, Gracenote® will help you better manage and thoroughly enjoy your music collection.
Updates to the Gracenote® database are released quarterly and can be downloaded for installation on your vehicle's audio system. The updates for your Acura vehicle must be obtained from this web site as files from other sources will not work.
| Compatibility: |
2010-2013 Acura MDX
2011-2014 Acura TSX/TSX Wagon
2010-2013 Acura ZDX
|
| Version Number: |
12992 |
| Database Date: |
Q2 2019 |
| Next Available Update: |
Approx. October 2019 |
The three-step process may take up to 90 minutes from start to completion, depending on your computer and Internet connection.
You may need to complete the steps at separate times.
Get Update
NOTE: Your Acura Audio System will not allow you to install an older version of the Gracenote® database. You may already have the latest version installed and may not need to update the database. To determine which Gracenote® database version is currently installed follow the steps below:
Compare the version number in the vehicle with the latest version number listed above. If the version numbers are the same, the vehicle has the most recent Gracenote® database. If the version numbers are different, you can update the Gracenote® database.
For customer service, please call 1-888-291-4675.
Home Back to Top
Print This Page
Gracenote® Update Instructions
Step 1: Download
Download Steps:
1. Click on the button below to start your download (Estimated download time: 1 hour with DSL).
Hint: If your browser does not automatically start the download process, be sure your browser or security settings allow files to be downloaded from this Web site. You can also right-click the image and select "Save Link As" to start the download process.
2. Once you have downloaded the file to your computer, locate the file on your Hard-Disk Drive and double-click the file to decompress it (i.e., to return it to its original size).
Hint: If you do not have a decompression program installed on your computer, you can download a free trial copy of WinZip here.
3. Make sure all of the following files from the Gracenote Download Link have been downloaded and decompressed:
CDDB (file folder)
pamenipla.apn
The CDDB folder should contain the following files:
CDDB_MNG.bin
ecddb.idx
ecddb.mdt
ecddb.tta
elists.db
Do not remove any files from the CDDB folder. Files should be transferred to your vehicle in this format.
CDDB
pamenipla.apn
Back to Top
Step 2: Transfer
Once all the files are decompressed you'll need to burn the CDDB file folder (containing the files shown in Step 3 above) and pamenipla.apn file to a blank CD or transfer them to a USB flash drive. If you choose to use a CD, it must be a recordable CD-R or CD-RW.
NOTE: CDs created with the built-in Windows XP CD-burning software cannot be read by the system. You must use a third-party CD-burning program to create the disc.
To transfer the files to your CD or USB flash drive, do the following:
1. Click on the "START" button in your computer's lower left-hand column and select "MY COMPUTER."
2. Locate the CD or USB flash drive icon.
3. Click on and drag the decompressed files listed above onto the CD or USB icon, which will start the transfer process. All of these files must be copied to the root of the CD or the USB flash drive and should not be copied into any folders.
Once this process is complete, you are now ready to install the Gracenote® file in your vehicle.
Back to Top
Step 3: Install
Now that you've downloaded and decompressed all your files, you're ready to install the update. Please note the Gracenote® update may take up to 25 minutes to complete. Your audio system will be fully functional during this time, with the exception of the CD/DVD drive.
Make sure your engine is running during the Gracenote® update installation. Do not run the installation with the key in the ACC position as this may drain your battery.
Acura Gracenote® CDDB Database Update - Vehicle Installation Instructions:
1. With your audio/navigation system turned on, insert the update CD into the drive or the USB flash drive into the USB port.
2. - Make sure the audio/navigation system is turned on.
- Press the Audio button on the audio/navigation unit.
- Press the HDD button on the touch screen.
- Press settings on the audio/navigation unit.
- Press audio settings
- Move the Interface Dial down to select the Update Gracenote Album Info.

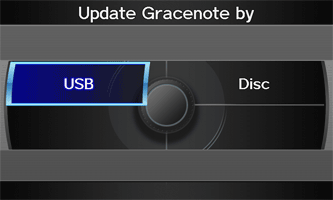

3. Select whether you are using a CD or USB flash drive to update the system.
Note: Selections will remain grayed out until a CD, or UDB device is inserted.

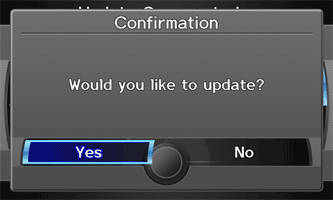

4. Select "OK"

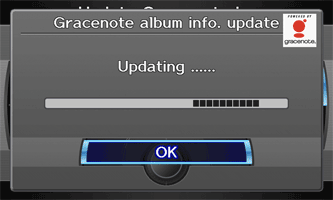

5. When this screen appears, the update is complete.
You're done! Please remove the CD or USB flash drive. Your system is now ready to be used.
Troubleshooting:
If you encounter issues during the update process, it may be due to one of the following reasons:
- If you pushed the "disc eject" button during the update, you must restart the update process from the beginning.
- The system won't allow installation of an old version of the Gracenote® database. Refer to the FAQ page for instructions on how to check the installed database version in your vehicle.
- The system may not be able to read your CD or USB. The CD you burn must be in one of the following formats in Mode 1: ISO9660 level1/level2, Joliet, or Romeo.
- The file may have been corrupted during the file decompression process. Repeat the process to decompress the file and burn the CD or USB and try again.
Please refer to the FAQ tab for additional information on troubleshooting, or contact customer service at 1-888-291-4675.
Home Back to Top
For customer service, please call 1-888-291-4675.
Print This Page
Gracenote® Frequently Asked Questions
Why does an error screen appear during the update process?
Possible reason:
This error screen will appear if the "Disc Eject" button was pushed during the update process. Reinsert the disc or USB and restart the update process from the beginning.
Why won't the system accept this update?
The system will not allow you to install an old version of the Gracenote® database. You may already have the latest version installed and may not need to update the database.

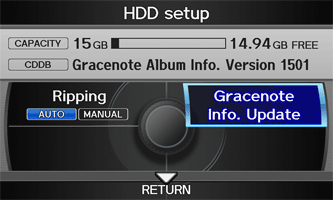

To check the version number of the Gracenote® database currently installed in the system, follow the instructions below:
Press the "Audio" button on the audio/navigation unit
Press the "HDD" button
Move the Interface Selector Knob down to select "Audio Menu"
Turn the Interface Dial Knob to select "HDD Setup"
The version number of the installed Gracenote® database will be shown. If you attempt to install an older or the same version of the Gracenote® database, the system will ask you to confirm your file version and reinstall with a newer one.
If your vehicle includes a Rear Seat Entertainment System, the disc may not be loaded in the correct CD slot. Ensure that the Gracenote® update disc is inserted in the upper CD slot.
Why was my Gracenote® update canceled?
If the CD cannot be read, the update will be canceled. The CD may not have been properly burned or the CD may be damaged. If you receive this prompt, you may need to burn a new CD. Make sure you still have the appropriate files, then record another disc and try again.
Please note that the CD you burn must be in one of the following formats in Mode 1: ISO9660 level1/level2, Joliet, or Romeo.
The file may have been corrupted during the file decompression process. Repeat the process to decompress the file and burn the CD or USB and try again.
IMPORTANT: Gracenote® database files obtained from other Web sites or another source will not work in your Acura entertainment system. You must obtain your update for the Acura vehicle from this Web site.
